Globoidal cam gear H(T)SG
Extremely high positioning accuracy
Our globoidal cam gears of the series HSG and HTSG are characterized by their typical 90° axis offset and their variable output movement. These properties enable versatile applications with highly dynamic movements and offer extremely high positioning accuracy. Thanks to the particularly rigid construction, they are powerful and guarantee high torque security.
HTSG - Output flange
HSG - Output shaft
Mechanism
Due to the flexible design of the globoidal cam a wide range of movements, speeds and step sizes can be realized at the output. This enables pendulum movements, pilgrim steps and constant speeds in transfer areas, among other things.
The output shaft is precisely adapted to the specific requirements and applications through a variety of variants to ensure optimum performance and efficiency.
PDF-Dimension sheet
| Example |
|---|
Explosion protection
If required, our indexers can be supplied in explosion-proof versions.
Der Explosionsschutz ist für folgende Zonen zugelassen:
Ex II 3G ck T5 100 °C – Zone 2 – Gas
Ex II 3D ck T5 100 °C – Zone 2 – Dust
HEINZ plus / HEINZ flex
Increase performance or increase flexibility and achieve the optimal adaptation of our indexer to your application.
Here you can find more information
Application possibilities
- Packaging machines
- Bottling
- Chain conveyor
- Swivel / pendulum unit
Mechanism
Our mechanisms are the central mechanical element of our cam gears and ensure identical functionality. The mechanism is characterized by extreme flexibility in production and can be individually adapted to specific requirements. Adjustments such as individual center distances, bearings and structural design features are possible. Our mechanisms can be optimally integrated into your machines, even in confined spaces or complex arrangements of different components.

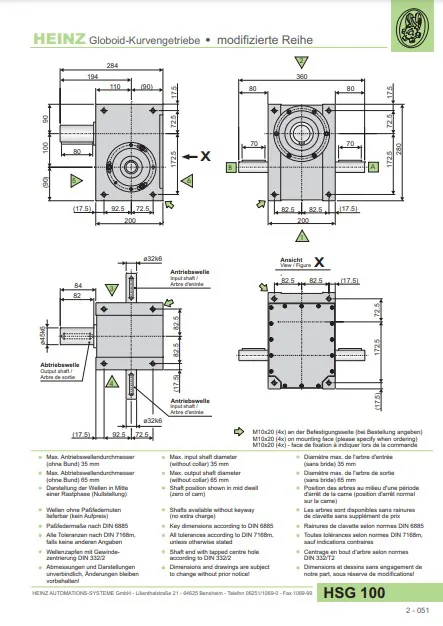

HSG mechanism [PDF]
Please let us know your specific requirements and the space available in your machine. We will work closely with you to develop a tailor-made mechanism. We will discuss all relevant properties, such as the optimal bearing and lubrication of the mechanism, which play a crucial role in its performance and longevity. This way we ensure that the mechanism is perfectly tailored to your needs and can be efficiently integrated into your machine.
Pendulum gear
Our globoid cam gears of the HSG/HTSG series are also available as pendulum gears. When the drive shaft rotates continuously, the output shaft performs a pendulum movement. The switching angles can be varied greatly, so that pilgrim step applications are also possible. We would be happy to help you design the required pendulum movement for your specific application.
