Parallel cam gear HSP
Parallel input and output shafts
Our Parallelkurvengetriebe of the series HSP are flat cam gears that are often used as drives for conveyor units due to their long dwell phase and parallel input and output shafts. They are also ideal for swivel units that require extremely fast and precise positioning. In addition, they can also be configured as pendulum gears.

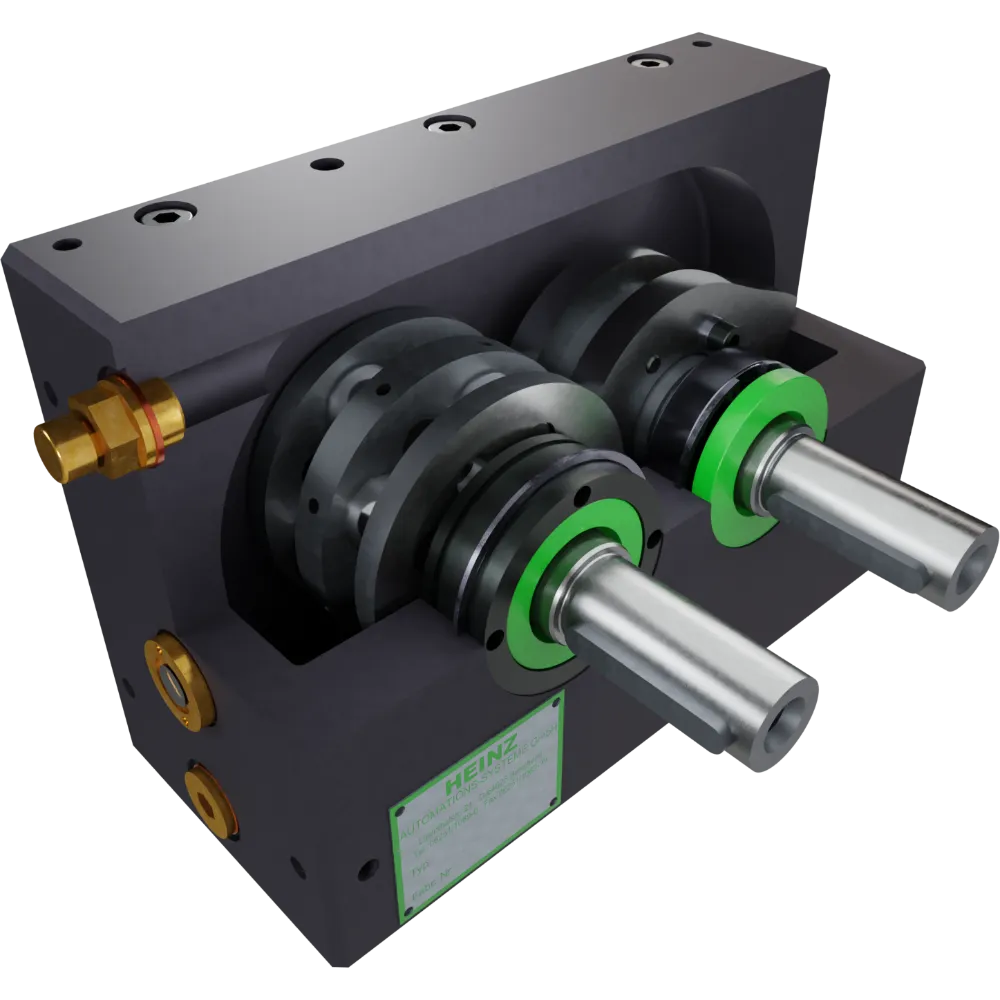

Cutted HSP
HSP
Mechanism
Due to the support rollers being mounted on both sides of the output shaft, the output is particularly torsionally rigid.
The input and output shafts are precisely adapted to the specific requirements and applications through a variety of variants to ensure optimum performance and efficiency.

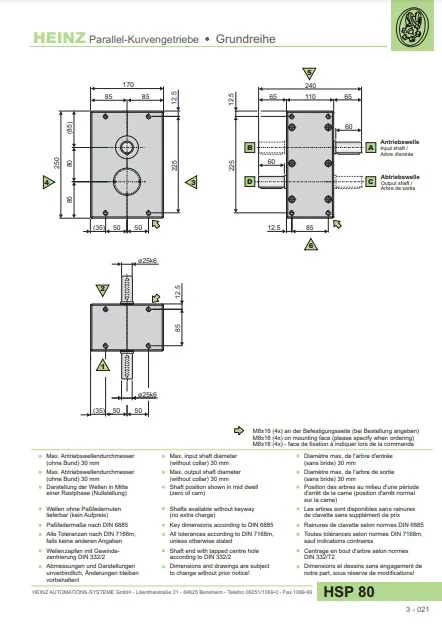

PDF-Dimension sheet
| HSP |
|---|
| HSP40 PDF |
| HSP50 PDF |
| HSP63 PDF |
| HSP65 PDF |
| HSP80 PDF |
| HSP80X(K) PDF |
| HSP100 PDF |
| HSP105 PDF |
| HSP125 PDF |
| HSP130 PDF |
| HSP160 PDF |
| HSP165 PDF |
| HSP200 PDF |
| HSP250 PDF |
| HSP315 PDF |
| HSP 335 on request |
| HSP 400 on request |
| HSP 450 on request |
| Example |
|---|
Explosion protection
If required, our indexers can be supplied in explosion-proof versions.
Der Explosionsschutz ist für folgende Zonen zugelassen:
Ex II 3G ck T5 100 °C – Zone 2 – Gas
Ex II 3D ck T5 100 °C – Zone 2 – Dust
HEINZ plus / HEINZ flex
Increase performance or increase flexibility and achieve the optimal adaptation of our indexer to your application.
Here you can find more information
Application possibilities
- Packaging machines
- Bottling
- Sorting
- Chain conveyor
- Swivel / pendulum unit
Mechanism
Our mechanisms are the central mechanical element of our cam gears and ensure identical functionality. The mechanism is characterized by extreme flexibility in production and can be individually adapted to specific requirements. Adjustments such as individual center distances, bearings and structural design features are possible. Our mechanisms can be optimally integrated into your machines, even in confined spaces or complex arrangements of different components.
Please let us know your specific requirements and the space available in your machine. We will work closely with you to develop a tailor-made mechanism. We will discuss all relevant properties, such as the optimal bearing and lubrication of the mechanism, which play a crucial role in its performance and longevity. This way we ensure that the mechanism is perfectly tailored to your needs and can be efficiently integrated into your machine.
Pendulum gear
Our parallel cam gears of the HSP series are also available as pendulum gears. When the drive shaft rotates continuously, the output shaft performs a pendulum movement. The switching angles can be varied greatly, so that pilgrim step applications are also possible. We would be happy to help you design the required pendulum movement for your specific application.
