Cylindrical index table HR

Large center hole for mounting units

Ein charakteristisches Merkmal dieses Typs ist die extrem große Mittenbohrung, die ihn besonders für Montage-Automaten und ähnliche Anwendungen geeignet macht.

Mechanism

Der große Kurvenrollenradius und Kurvendurchmesser sorgen für hohe Positioniergenauigkeit und ermöglichen kurze Schaltwinkel.

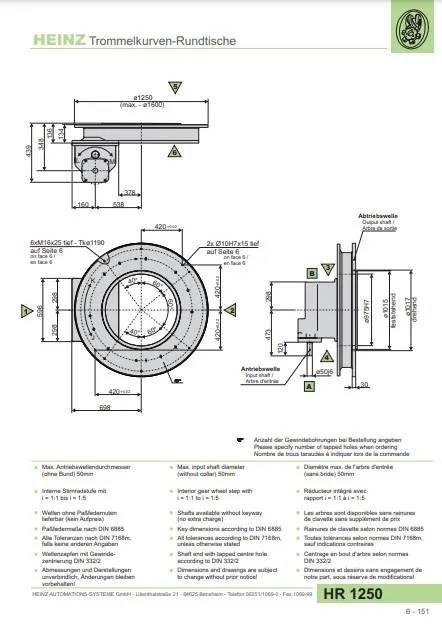

PDF-Dimension sheet

HR
HR800 PDF
HR1100 PDF
HR1250 PDF
HR1600 PDF

Example

Application possibilities

Assembly machines

HEINZ plus / HEINZ flex

Increase performance or increase flexibility and achieve the optimal adaptation of our indexer to your application.
Here you can find more information

Mechanism

Our mechanisms are the central mechanical element of our cam gears and ensure identical functionality. The mechanism is characterized by extreme flexibility in production and can be individually adapted to specific requirements. Adjustments such as individual center distances, bearings and structural design features are possible. Our mechanisms can be optimally integrated into your machines, even in confined spaces or complex arrangements of different components.

Please let us know your specific requirements and the space available in your machine. We will work closely with you to develop a tailor-made mechanism. We will discuss all relevant properties, such as the optimal bearing and lubrication of the mechanism, which play a crucial role in its performance and longevity. This way we ensure that the mechanism is perfectly tailored to your needs and can be efficiently integrated into your machine.
